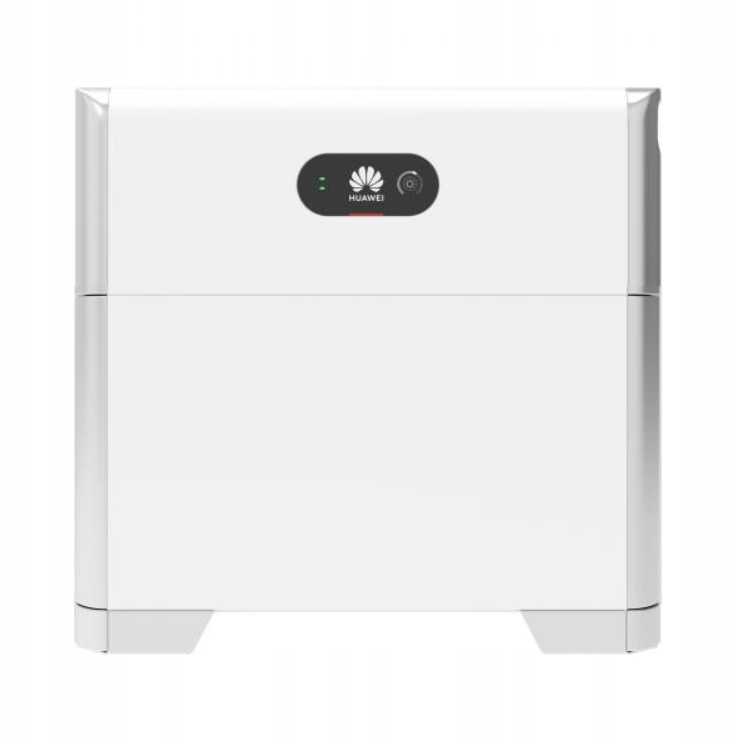

LUNA2000: 5kWh Battery Extension Huawei
5905951587158 - Huawei - LUNA2000-5-E0 et LUNA2000-5-C0

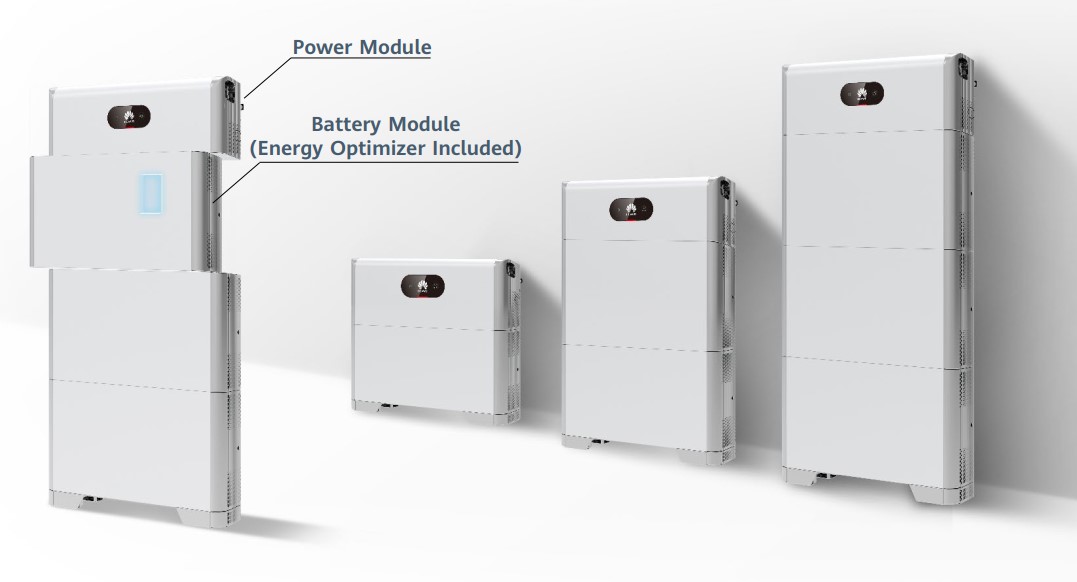

Discover Huawei's intelligent energy storage system, Luna2000, a flexible and scalable solution to optimize your self-consumption and achieve energy independence. This 5kWh extension pack, combined with the LUNA2000-5-C0 BMS, allows you to increase your battery capacity up to 30kWh, adapting to your specific needs. With a 10-year warranty and compatibility with a wide range of our inverters, this robust and reliable system is ideal for both individuals and professionals.
"Capacity"
5 kWh
"Weight"
70.1 kg
Net Width
670 mm
Net Depth
150 mm
"Net height"
600 mm
"Communication"
RS485 / CAN
"Warranty"
10 years
Nominal voltage (single-phase system)
360 V
Operating voltage range (single-phase system)
350-560V
Nominal voltage (three-phase system)
600 V
Operating voltage range (three-phase system)
600-980 V
Dimensions (Length x Width x Height)
670 x 150 x 600 mm
Weight with floor stand
63.8 kg
Power supply module dimensions (W x D x H)
670 x 150 x 240 mm
Power supply module weight
12 kg
Energy storage module dimensions
670 x 150 x 360 mm
Weight of the energy storage module
50 kg
"Installation
Ground support (standard), wall mounting (optional)
Operating temperature
-10°C to 55°C
Relative humidity
5% to 95%
Cooling
Natural convection
Index of Protection
IP 65
Sound transmission
"Less than 29 dB"
Cell Technology
LiFePO4
"Evolutionary"
Maximum 2 systems running in parallel
"Compatible Falniks"
SUN2000L-2/3/3.68/4/4.6/5KTL 4, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M0 4, SUN2000-3/4/5/6/8/10KTL-M1
"Certifications"
CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3
Class Energy:
Origin of the product:
Repairability Index:
0/10
Carbon Footprint:
User Guide:
